Outdoor 4 pairs of Cat5e UTP network cable/computer cable/data cable/communication cable/audio cable/connector

outdoor 4pair utp cat5e cable1.Conductor :0.5BC,0.51BC or CCA2,insulation:HDPE ID:0.92mm3,Twisted pairs.4,Shield:PET5,jacket :PVC,LZSH or PE6,Nominal diameter: 6.0±0.2mm 7,Average thickness: 0.55mm8,Messenger: Steel wire9.Frequency: 100MHz 10,Resistance Unbalance,maximum : 4.5%11,Mutual Capacitance :5.

Featured Products

outdoor 4pair utp cat5e cable

1.Conductor :0.5BC,0.51BC or CCA
2,insulation:HDPE ID:0.92mm
3,Twisted pairs.
5,jacket :PVC,LZSH or PE
6,Nominal diameter: 6.0±0.2mm
7,Average thickness: 0.55mm
8,Messenger: Steel wire
9.Frequency: 100MHz
10,Resistance Unbalance,maximum : 4.5%

11,Mutual Capacitance :5.6 nF/100 m @ 1 kHz
12,Dielectric Test: DC 2500V/2min at 20ºC
13,Application: 100Base T4, 100Base-TX,100VG-AnyLan,1000 Base-T(Gigabit Ethernet),155Mbps ATM,622Mbps ATM.
14, Standard: international ISO/IEC 11801; USA ANSI/TIA/EIA-568B.

15,Operating temperature range: -20 to 75°C
16,305meters pull box or 500meters wooden drum
17,OEM order is welcome

Frequency(MHz)Impedance(Ω)Attenuation(dB/100m)NEXT(dB) Nominal Velocity of Propagation
1MHz85~1152.164      NVP 69%
100MHz22.0 34
 Outdoor 4 Pair Cat5e UTP Network Cable/Computer Cable/Data Cable/Communication Cable/Audio Cable/Connector

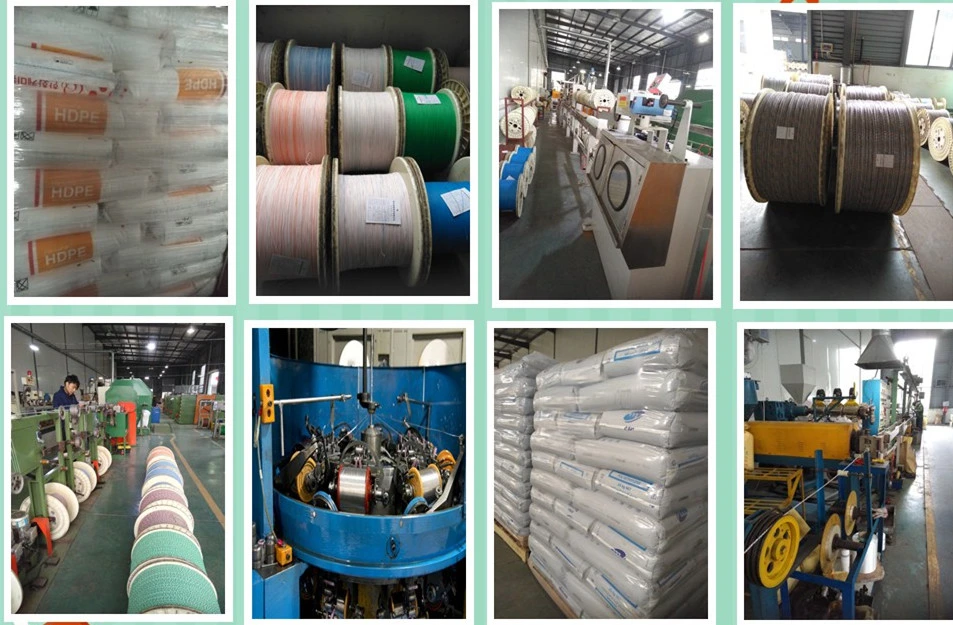

Welcome to visit our factory and  get our samples.
  Your inquiry will be answered within 24 hours .Wishing to be your long- term partner ,please feel free to contact me ,we will do our best for you.
Choose us, won't make you disappointed:
1.6years manufactory experience
2.OEM/ODM available
3.Steady product quality
4.Strict quality control
5.Strictly conform to CE,ROHS,Iso9001

6.Quick delivery time(20ft,25days)
